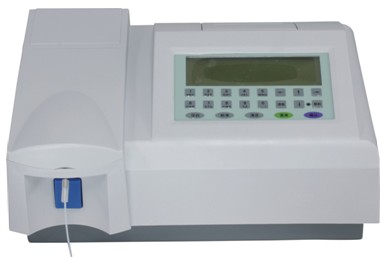

CN-1225 Semi-Auto Biochemistry Analyzer

Feature：

● 6 detecting wavelengths: 450-492-510-546-578-630nm

● Up to 70 test items

● Analytical modes: end-point, absorbance.

● Large LCD. menu operation, hospital and patient information editing available

● Inner thermal-sensitive printer. English comprehensive report available, including refer range

● Memory for 10000 sample results

● Few reagent needing, low detecting cost.

● Open reagents

Specification:

Test project: ≥70

Wavelength: 450,492,510,546,578,630nm

Flow cell: 32uL,quartz glass

Liquid volume: 200-3000uL

Resolution: 0.001Abs(display),0.0001Abs(calculation)

Carryover: ＜1%

Repeatability: ＜1%

Printer: Internal thermal-sensitive printer, 58nm paper width

Display: 240*64LCD

Communication: RS-232 serial cable

Power supply: 220\110VAC±15%,50\60Hz 80W

Temperature: 15℃-30℃ wet≤80%

Dimension: 380mm(L)*330mm(W)160mm(H)

Weight: 5Kg

Usual test list:

Alanine Aminotransferase  ALT

Glutamic-oxalacetic transaminase   AST

Alkalinity phosphatase   ALP

Total bilirubin   DBIL

Total protein   TP

Albumin   ALB

Urea nitrogen   URE

Inosine anhydride   CRE

Triglyceride   TG

Cholesterol   TCHO

Glucose   GLU

Serum potassium   K

Serum sodium   Na

Serum chlorine   CL

Serum calcium   Ca
