CN-BBC86 CLASS II A2 BIOSAFETY CABINET

Advantage:
1. Small dimension,save space.
2. Centrifugal fan, speed, adjustable; H14 HEPA filter.
3. Large LCD diaplay: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
4. Time reaerve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.
5. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.
6. Motorized front window: The front window is motorized for convenient, one-hand operation.
7. Voice prompt function: Airflow alarm, filter replacing alarm and front window height alarm.

Advantage:

1. Small dimension,save space.

2. Centrifugal fan, speed, adjustable; H14 HEPA filter.

3. Large LCD diaplay: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

4. Time reaerve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.

5. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.

6. Motorized front window: The front window is motorized for convenient, one-hand operation.

7. Voice prompt function: Airflow alarm, filter replacing alarm and front window height alarm.




Specifications

Model

CN-BBC86

External Size(W*D*H)

700*650*1230 mm

Internal Size(W*D*H)

600*500*540 mm

Tested Opening

Safety height: 200mm(8")

Max Opening

370 mm15’’

Inflow Velocity

0.53±0.025 m/s

Down Flow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3μm. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass  ≥ 5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

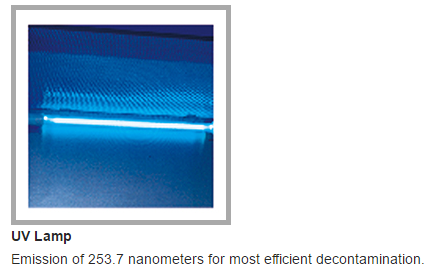

UV Lamp

15W*1


UV timer, UV life indicator, emission of 253.7 nanometers

for most efficient decontamination.

Fluorescent Lamp

40W*1

Illumination

≥1000Lux

Consumption

500W

Socket

Two, total load of two sockets: 500W

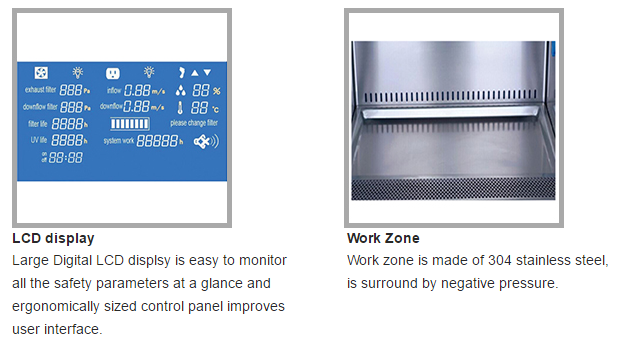

Display

LCD display: exhaust filter and downflow filter pressure, filter and

UV lamp working time, inflow and downflow velocity,filter life,

humidity and temperature, system working time etc.

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Visual and Audio alarm

Filter replacement, window over height, abnormal air flow velocity.

Material

Work Zone: 304 stainless steel


Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm with optional base stand

Power Supply

AC220V±10%, 50/60Hz; 110V±10%,60Hz

Standard Accessory

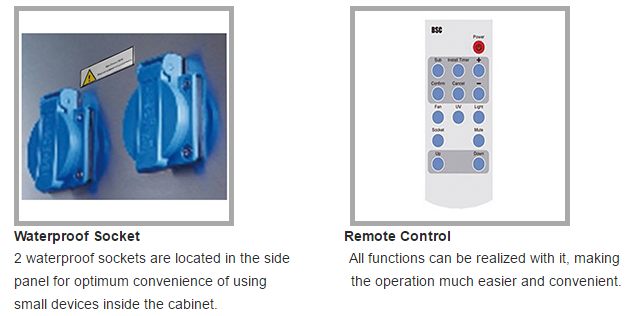

Fluorescent lamp, UV lamp*2, Remote control, Waterproof sockets*2

Optional Accessory

Base stand, Universal caster with brake and leveling feet.

Gross Weight without Base Stand

Wooden: 164kg            Carton:121kg

Gross weight with Base Stand

Wooden:196kg

Package Size without Base Stand (W*D*H)

Wooden:860*800*1450mm    Carton:820*760*1430mm

Package Size with Base Stand (W*D*H)

Wooden: 860*960*1450mm



Standard Accessory

Fluorescent lamp   1pcs

UV lamp   2pcs

Remote control   1pcs

Waterproof sockets   2pcs
