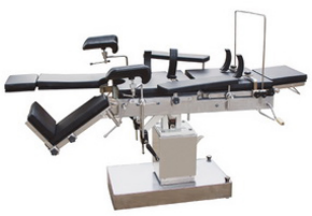

CN-3002 Multi-purpose Operating Table

This table is suitable for surgical procedures of the head, neck, thorax and abdomen, perineum and extremities as well as for gynecology and orthopedics operation. The table's elevation, lowering ,reversed trendelenburg, trendelenburg, lateral tilt can be all automatically controlled. Leg section can be rotated, disassembled and adjusted easily. It is most suitable for the urological operation. The table top made of high strength glass, can move backwards and forwards. X-Ray examination can be carried out on it, It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both sides. Chassis inside an outside covers are stainless steel.

This table is suitable for surgical procedures of the head, neck, thorax and abdomen, perineum and extremities as well as for gynecology and orthopedics operation. The table's elevation, lowering ,reversed trendelenburg, trendelenburg, lateral tilt can be all automatically controlled. Leg section can be rotated, disassembled and adjusted easily. It is most suitable for the urological operation. The table top made of high strength glass, can move backwards and forwards. X-Ray examination can be carried out on it, It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both sides. Chassis inside an outside covers are stainless steel.



Specifications

Length 2100mm

Width 480mm Min

Max Height 1040mm

Height 800mm

Adjust ≥240mm

Reversed Trendelenburg ≥20°

Left ≥18°

Right ≥18°

Trendelenburg ≥20°

Head Section lowered from the Horizontal ≥90°

Head Section Raised from the Horizontal ≥45°

Backward and Forward Movement ≥400mm

Leg section Opened ≥90°

Back Section Raised From the Horizontal ≥55°

Leg section Lowered from the Horizontal ≥90°

Kidney Bridge Elevation ≥120mm
