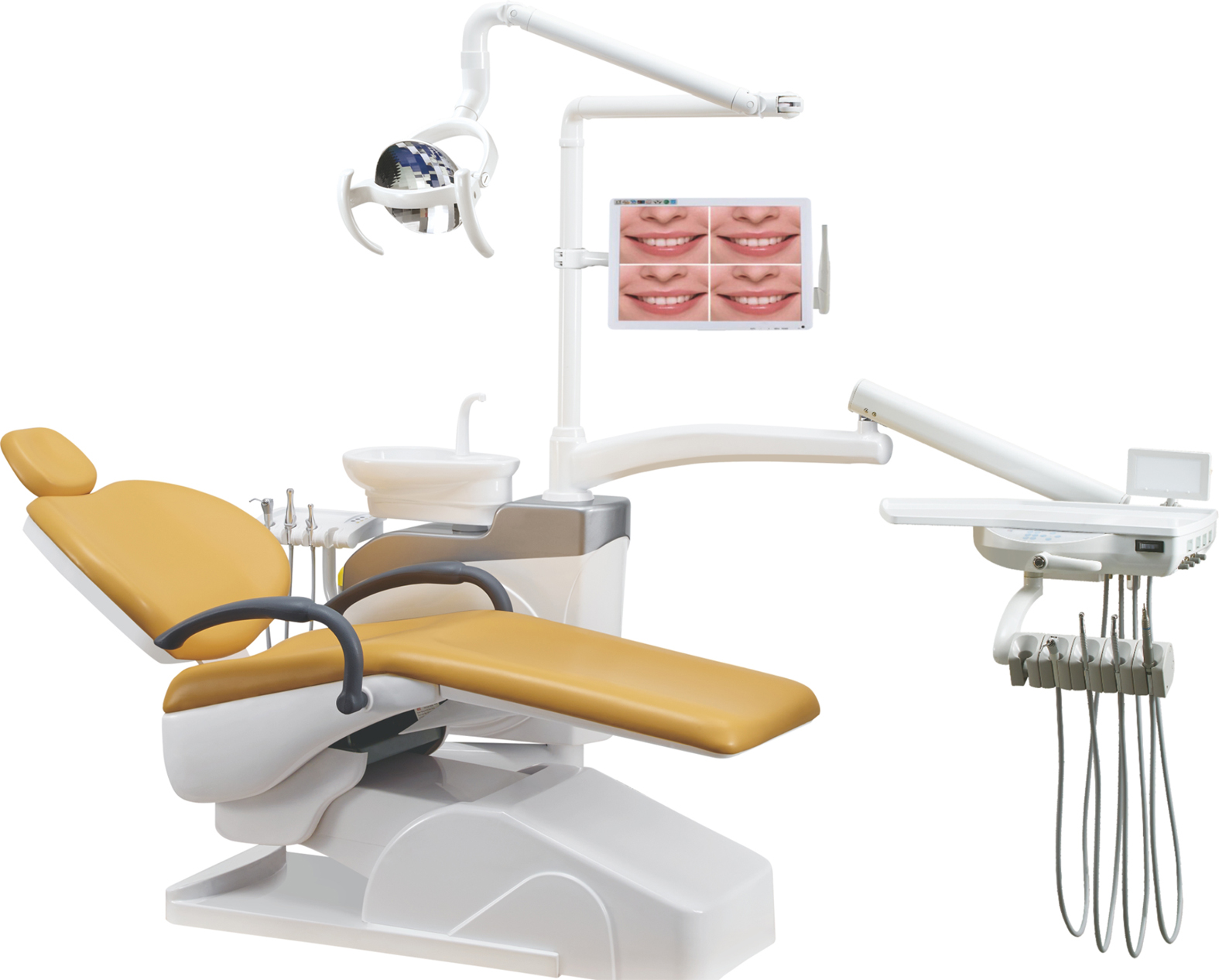

CN-B660 Computer-controlled Dental Unit

Standard Accessories
Three way syringe (cold/hot water) ---- 2 pcs
Automatic cup filler ---- 1set
Water suction and saliva ejector ---- 2 pcs
Luxurious toughened glass spittoon ---- 1set
Water purified system ---- 1set
Dentist’s stool ---- 1set
Optical Inductive hand bur control system ---- 1 set
LED low pressure viewer ---- 1 set
24V noiseless DC motor chair(Compensate design) ---- 1 set
Extendable cushion and backrest ---- 1 set
High-grade articulated headrest ---- 1 set
Backrest and chair horizontal compensation design, compliant with
ergonomically theory and more relaxing for patient ---- 1 set

Options

4-hole high speed hand piece (2 sets)

4-hole low speed hand piece (1 set)

Inductive dental operation light

Curing Light

Scaler

Oil-free Air compressor (840W)

Amalgamator

Vacuum Sterilizer

Digital intra-oral camera system + LCD display

Specifications

ITEMS	Technical performances
structural style	full-automatic Integral dental unit
supply voltage	AC220V 50HZ
Handpiece system configuration	seton adopt down-hanging
high-speed air turbine handpiece	No-load speed air pressure: 0.22MPa time rotate speed≥35X104r/min,
low-speed air turbine handpiece	No-load speed air pressure:0.33MPa time rotate speed≥18X103r/min
handarm	Support air, water and fog
mouth lamp	Halogen illuminance:10000LX~15000LX
film viewer	Voltage: 24V power: 8 illuminance: ≥2000LX
Gas displacement	55L/min
air supply pressure	0.55Mpa.8Mpa
Water supply pressure	0.2Mpa~0.4Mpa
instrument tray	degree of skewness≦3° supporting free lifting in certain range，and stay at random
Built-in water purification system	prolong handpiece’s working life
dental chair	Load capacity of ANJUE series integral dental unit ≥1323N lifting and supination: DC motor motor：24V DC motor Range of lifting height (from ground)≤600mm，≥800mm Hypsokinesis range of backrest: 1050~1070mm Maximal hypsokinesis of cushion≥100 Up-down move of head support:100mm
Chair of doctor	Range of lifting height(from ground)：420-560mm adjustable
