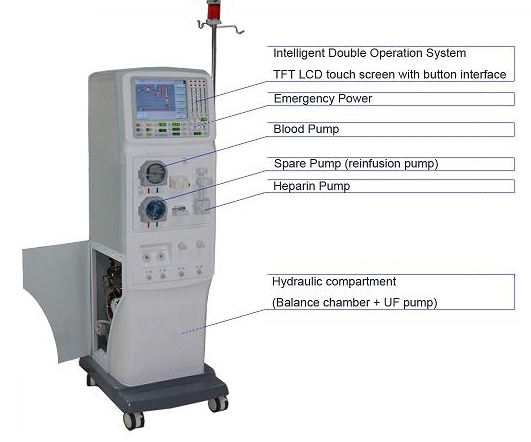

CN-20008B LCD Touch Screen Dialysis Machine

Introduction

Size & Weight Size: 380mm×400mm×1380mm (L*W*H)

Area: 500*520 mm

Weight: 88KG

Power Supply AC220V, 50Hz / 60Hz, 10A

Input power: 1500W

Back-up battery: 30 minutes (optional)

Water input pressure: 0.15 MPa   ～ 0.6 MPa, 21.75 P.S.I. ～ 87 P.S.I.

Water input temperature: 10℃ ～ 30℃

Working environment: temperature 10ºC ～ 30ºC at relative humidity of no more than 70%.

Dialysate

Dialysate temperature: preset range 34.0℃ ～ 39.0℃

Dialysate flux: 300~800 ml/min

Dialysate concentration: 12.1 mS/cm ～ 16.0 mS/cm, ±0.1 mS/cm

Dialysate mixing ratio:can set variety ratio.

UF rate Flow range: 0 ml/h ～ 4000 ml/h

Resolution ratio: 1ml

Precision: ±30 ml/h

Extracorporeal Part

Venous pressure: -180 mmHg ～ +600 mmHg, ±10 mmHg

Arterial pressure : -380 mmHg ～ +400 mmHg, ±10 mmHg

TMP  pressure : -180 mmHg ～ +600 mmHg, ±20 mmHg

Blood pump flow range: 20 ml/min ～ 400 ml/min（diameter:Ф6 mm）

Spare pump flow range: 30 ml/min ～ 600 ml/min（diameter:Ф8 mm）

Resolution ratio: 1 ml

Precision: error range ±10ml or 10% of reading

Heparin Pump

Syringe size: 20, 30, 50 ml

Flow range: 0 ml/h ～ 10 ml/h

Resolution ratio: 0.1ml

Precision: ±5%

Sanitize

1.Hot decalcification :

Time: about 20 minutes

Temperature: 30~60℃, 500ml/min.

2.Chemical disinfection :

Time: about 45 minutes

Temperature: 30~40℃, 500ml/min.

3. Heat disinfection :

Time: about 60 minutes

Temperature: >85℃, 300ml/min.

Storage Environment  Storage temperature should be between 5℃ ～ 40℃, at relative humidity of no more than 80%.

Monitoring System

Dialysate temperature: preset range 34.0℃ ～ 39.0℃, ±0.5℃

Blood leak detection: Photochromic

Alarm when erythrocyte specific volume is 0.32±0.02 or blood leak volume is equal or more than 1ml per liter of dialysate

Bubble detection: ultrasonic

Alarm when a single air bubble volume is more than 200µl at 200ml/min blood flow

Conductivity: acoustic-optic, ±0.5%

Language

English and French etc.
