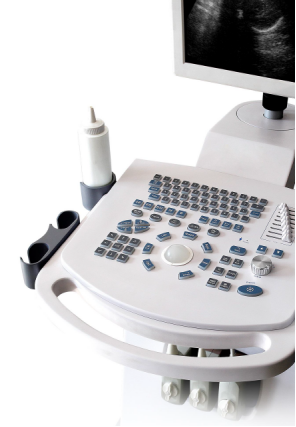

CN-370PC Full Digital Ultrasound Scanner

Features
High definition and multifunctional trolley type full digital ultrasonic diagnostic apparatus
The image is clear and the operation is convenient
15 inch LCD
Powerful image post-processing functions

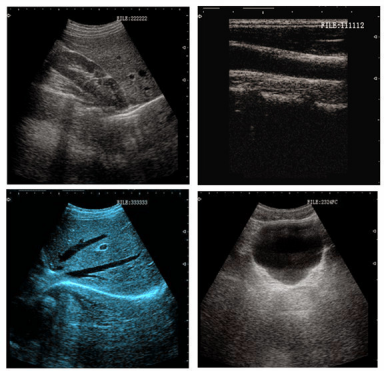

The first class digital imaging technology, the image is clearer
DBF all digital beam-forming
DRF real-time dynamic reception of focus by point by point
DRA real-time dynamic sound velocity change
THI tissue harmonic imaging
RDA real-time dynamic aperture imaging
DFS numerical control dynamic frequency scanning
RDF real-time dynamic filtering
A stable and concise operating system
Backlight silicone keyboard, more comfortable and wearable, darkroom use no longer worry
Intelligent menu, human-computer dialogue is easy and quick
Shows two puncture guide lines, adjustable angles and positions.
The multiple rate shows that the diagnosis is more accurate.
External USB storage, image uploading more convenient
Large volume movie playback, image automatic circulation demonstration
Abundant measurement functions: distance, circumference, area, volume, obstetric table, heart software package, etc.

Features

High definition and multifunctional trolley type full digital ultrasonic diagnostic apparatus

The image is clear and the operation is convenient

15 inch LCD

Powerful image post-processing functions

The first class digital imaging technology, the image is clearer

DBF all digital beam-forming

DRF real-time dynamic reception of focus by point by point

DRA real-time dynamic sound velocity change

THI tissue harmonic imaging

RDA real-time dynamic aperture imaging

DFS numerical control dynamic frequency scanning

RDF real-time dynamic filtering

A stable and concise operating system

Backlight silicone keyboard, more comfortable and wearable, darkroom use no longer worry

Intelligent menu, human-computer dialogue is easy and quick

Shows two puncture guide lines, adjustable angles and positions.

The multiple rate shows that the diagnosis is more accurate.

External USB storage, image uploading more convenient

Large volume movie playback, image automatic circulation demonstration

Abundant measurement functions: distance, circumference, area, volume, obstetric table, heart software package, etc.



Specifications

Display: 15 inch LCD

Scanning mode: convex matrix / linear array / microconvex

Probe interface: 3, with automatic identification function to support multiple probes.

Interface: Chinese/English/Russian/Spanish/French/Arabic/Vietnamese/Portuguese/Indonesian

Display mode: B, B+B, 4B, B+M, M

Electron focusing: four segment electron focusing

Postural markers: 97 species

3.5MHz Convex Probe: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5.0MHz

5.0MHz Micro Convex probe: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz

6.5MHz Trans vaginal probe: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz

7.5MHz Linear probe & Rectal Probe: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz

Image mirroring: upper and lower mirrors, left and right mirrors, black and white flip, in any mode can be mirrored conversion, operation

The image can be rotated at 0 degrees, 90 degrees, 180 degrees, 270 degrees, and 360 degrees.

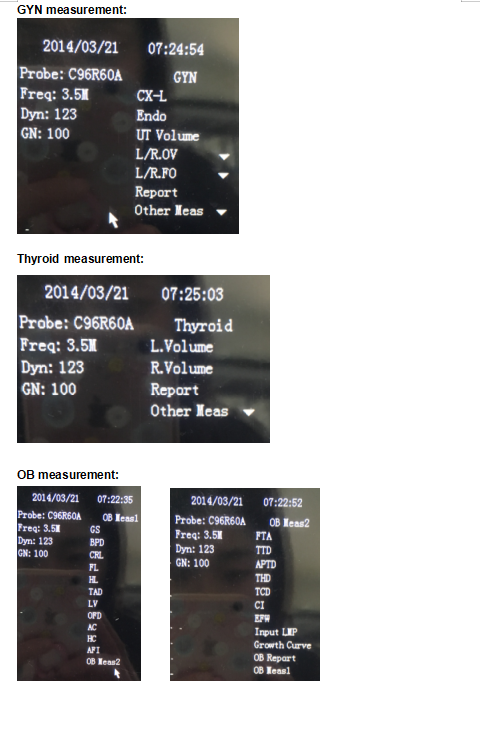

Measurements: distance, circumference, area, volume, heart rate, gestational age (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of birth, fetal weight display and so on.

The function software package and measurement method can be selected through the track ball cursor.

Angle measurement, you can intuitively see the angle and length of the angle.

Have histogram function

Have depth measurement function

It has 20 obstetric measurement packages and has fetal growth curve function.

In any imaging mode, the data can be measured in real time

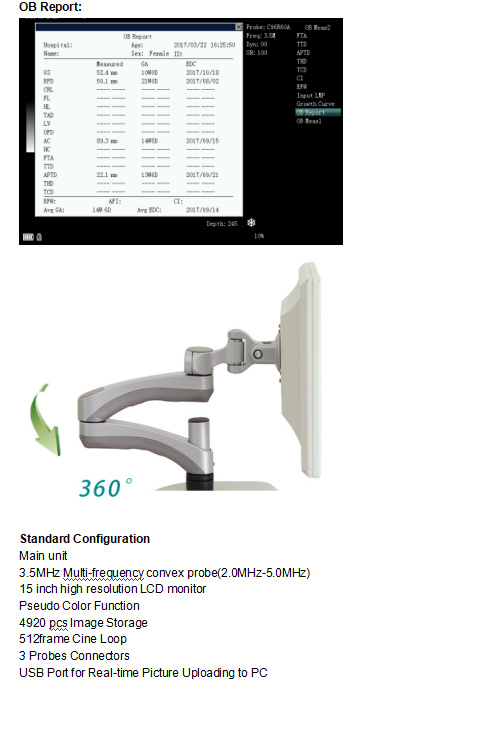

Automatic memory and generative function of obstetric data

Character display: date, clock, name, sex, age, doctor, hospital, annotation (full screen character editing) (a mixed editor for letters, numbers, punctuation, and arrows)

One key out of patient information entry function

Movie playback: 512 frames, continuous playback or one by one view.

Permanent storage: built in 8G memory, more than 4000, supporting U disk storage (available for storage).

Single memory image time is less than 3 seconds

A key to find saved images, can be found by the date named folder quickly found and a key export.

Gray scale: 256 level

With the function of puncture and guidance, the angle and position of the two puncture lines can be adjusted visually.

Lithotripsy positioning, dynamic target tracking function

Dynamic range: 0-135dB, step 8, with independent buttons, visually adjustable, adjustable cycle.

Intelligent TGC control: 8 segments.

Total gain: 0-100, step 2

Variable aperture, dynamic trace, dynamic digital filtering, etc.

2 stage visible tunable harmonics of tissue

8 kinds of fake color processing, etc.


The 4 frames are independent keys, visually adjustable, cycle adjustable, and can also be changed through the track ball cursor.

6 kinds of line correlation, with independent buttons, visually adjustable, circular adjustment, or track ball cursor changes.

The 8 types of gamma correction are independent keys, visually adjustable, cycle adjustable, and can also be changed through the trackball cursor.

Edge enhancement 4 level adjustable, with independent buttons, visually adjustable, adjustable cycle, also can be changed through the track ball cursor.

The scanning range can be adjusted 4 levels, with independent buttons, visually adjustable, circular adjustment, and also can be changed by the track ball cursor.

Luminance key addition and subtraction enhancement and weakening function

Caps and Shift locking functions

Blind area: less than 4

Maximum display depth: 3.5MHz:126-307mm 6.5MHz:189mm

7.5MHz:40-166mm 5.0MHz:205mm

Geometric accuracy: transverse less than 5%, longitudinal less than 5%

Resolution: the side is less than 2mm, and the axis is less than 1mm

Interface: RS-232 interface, VGA interface, VIDEO interface, USB interface.

Display rate: 6 display modes; lesion diagnosis is more accurate. In the case of x 1.5 and X 1.8, the display of depth can be raised

Starting time is less than 7 seconds

The button has a buzz sound, but open / close

Formulae of fast data measurement

You can quickly set time, name and other editors through the track ball and keyboard.

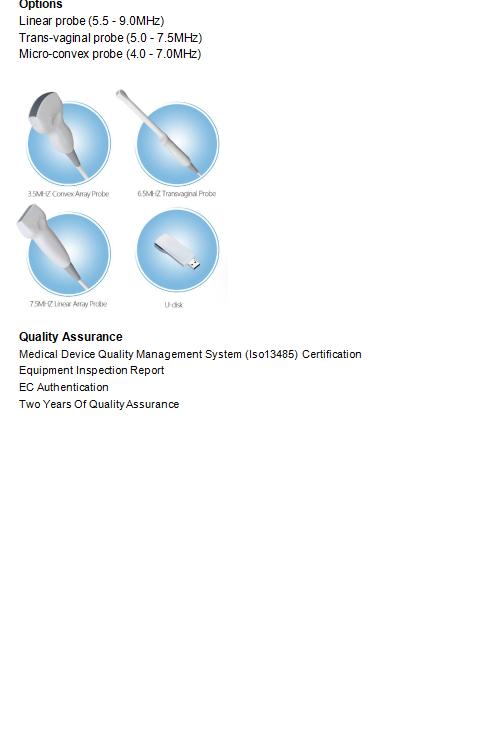

Probe frequency Inforamtion

Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5.0MHz

Depth:16 level126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm

Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level 35,42,49,62,69,76,83,90,97,104mm
Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,7.5MHz
Depth: 16 level 62,69,76,83,90,97,104,111,125,139mm

Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level 62,69,83,97,111,125,139,152,166,180mm
