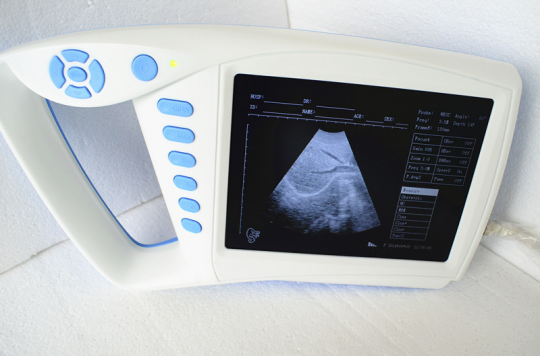

CN-6100P VET Veterinary Full Digital Palm Type Ultrasound Scanner with Built-in Li-battery

Main Features

Full digital beam forming technology

Generate Report

7 inch TFT LCD

A/DC and LI-battery operated

Light and compact design, simple to use

High quality keyboard and clear image

USB 2.0 for real-time picture uploading to PC

Probe automatic identification

Net weight: 1.2 Kgs

Dimension: 320×170×65mm

Main Technical Specification

·Scope of Application:pig, dog, horse, cattle,cow, sheep, cat, camel,dolphin etc.

·Scanning Method: Convex, Micro-convex, Linear, Rectal

·Frequency for Convex : 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0
·Display Mode:  B, B+B, B+M, M, 4B
·Gray Scale: 256 levels

·Gamma: 4
·Monitor: 7 inch LCD

·Operation interface: English/Chinese switchable
·Scanning Deepth : 180mm

·Image magnification:  *1.0, *1.2,*1.3 *1.5,*1.6, *1.8, *2.0 times

·Image control: left/right, black/white, up/down

·General Measurement: Distance, Circumference/Area, Volume, Heart Rate

·512 frames for cine-memory
·Human Body Mark : 15 kinds
·4 focusing combination selectable
·Characteristic showing in real-time clock, ID, Sex, Age, Hospital name, Focusing Info and Gain (Near, Far, Overall) info.

·8 Segments of TGC adjustment, full gain control

·Puncture function is available under B mode.

·Generate HistoG

Veterinary Measurement

Bovine: BPD , CRL

Equine :BPD, GSD

Ovine: BPD, CRL

Canine: CRL, BD

Feline: BD, HD

Standard Configuration:

6.5 inches LCD main unit

2.5-7.5Mhz mutli-frequency convex array probe

Li-battery

USB port

18months warranty

16 pseudo colors

Neck belt bag

Options

Linear array probe

Micro-Convex array probe

Trans-vaginal array probe

Rectal probe ( For animal)

Video Printer

Laser Printer
