Pulse Vacuum Autoclave (Single Door or Double Door ,Capacity from 0.25m³ to 2.5m³)

1.MAIN PARAMETERS

*Pulse Vacuum Sterilizer CN-MD25 (Single Door or Double Door)

Capacity: 0.25m³

Inner Chamber Dimension (L*W*H): 800*600*600mm

Outer Dimension (L*W*H): 1100*1300*1700mm

Steam Pressure and the Consumption: 0.4-0.8Mpa 15KG

Water Source Pressure and the Consumption: 0.15-0.3Mpa 35KG

Power: 2+24KW

Net Weight: 900Kg

Design Pressure: 0.25Mpa

Design Temperature: 139℃

*Pulse Vacuum Sterilizer CN-MD36 (Single Door or Double Door)

Capacity: 0.36m³

Inner Chamber Dimension (L*W*H): 1000*600*600mm

Outer Dimension (L*W*H): 1300*1300*1700mm

Steam Pressure and the Consumption: 0.4-0.8Mpa 20KG

Water Source Pressure and the Consumption: 0.15-0.3Mpa 40KG

Power: 2+24KW

Net Weight: 1000Kg

Design Pressure: 0.25Mpa

Design Temperature: 139℃

*Pulse Vacuum Sterilizer CN-MD60 (Single Door or Double Door)

Capacity: 0.6m³

Inner Chamber Dimension (L*W*H): 1200*610*910mm

Outer Dimension (L*W*H): 1500*1350*1950mm

Steam Pressure and the Consumption: 0.4-0.8Mpa 30KG

Water Source Pressure and the Consumption: 0.15-0.3Mpa 45KG

Power: 3+36KW

Net Weight: 1400Kg

Design Pressure: 0.25Mpa

Design Temperature: 139℃

*Pulse Vacuum Sterilizer CN-MD80 (Single Door or Double Door)

Capacity: 0.8m³

Inner Chamber Dimension (L*W*H): 1500*610*910mm

Outer Dimension (L*W*H): 1800*1350*1950mm

Steam Pressure and the Consumption: 0.4-0.8Mpa 40KG

Water Source Pressure and the Consumption: 0.15-0.3Mpa 50KG

Power: 3KW

Net Weight: 1600Kg

Design Pressure: 0.25Mpa

Design Temperature: 139℃

*Pulse Vacuum Sterilizer CN-MD120 (Single Door or Double Door)

Capacity: 1.2m³

Inner Chamber Dimension (L*W*H): 1500*680*1180mm

Outer Dimension (L*W*H): 1790*1450*1950mm

Steam Pressure and the Consumption: 0.4-0.8Mpa 48KG

Water Source Pressure and the Consumption: 0.15-0.3Mpa 55KG

Power: 4KW

Net Weight: 1800Kg

Design Pressure: 0.25Mpa

Design Temperature: 139℃

*Pulse Vacuum Sterilizer CN-MD150 (Single Door or Double Door)

Capacity: 1.5m³

Inner Chamber Dimension (L*W*H): 1900*680*1180mm

Outer Dimension (L*W*H): 2190*1450*1950mm

Steam Pressure and the Consumption: 0.4-0.8Mpa 55KG

Water Source Pressure and the Consumption: 0.15-0.3Mpa 60KG

Power: 4KW

Net Weight: 2000Kg

Design Pressure: 0.25Mpa

Design Temperature: 139℃

*Pulse Vacuum Sterilizer CN-MD200 (Single Door or Double Door)

Capacity: 2.0m³

Inner Chamber Dimension (L*W*H): 1700*1000*1200mm

Outer Dimension (L*W*H): 2000*1850*2000mm

Steam Pressure and the Consumption: 0.4-0.8Mpa 65KG

Water Source Pressure and the Consumption: 0.15-0.3Mpa 65KG

Power: 4.5KW

Net Weight: 2500Kg

Design Pressure: 0.25Mpa

Design Temperature: 139℃

*Pulse Vacuum Sterilizer CN-MD250 (Single Door or Double Door)

Capacity 2.5m3

Inner Chamber Dimension (L*W*H): 1700*1000*1200mm

Outer Dimension (L*W*H): 2000*1850*2000mm

Steam Pressure and the Consumption: 0.4-0.8Mpa 65KG

Water Source Pressure and the Consumption: 0.15-0.3Mpa 65KG

Power: 5KW

Net Weight: 3000Kg

Design Pressure: 0.25Mpa

Design Temperature: 139℃

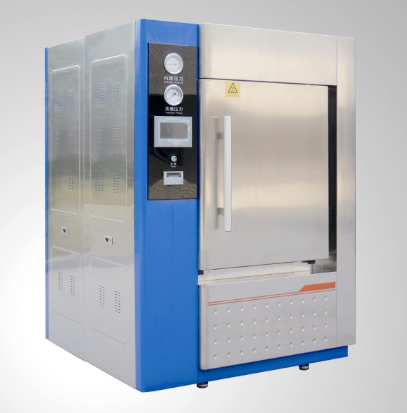

Pulse Vacuum Autoclave,Double Door,Capacity 2.5m3

2. APPLICATION

The cabinet utilizes the physical characteristics of the saturated steam, which would release large amounts of latent heat and humidity during condensation, and with a period of time to keep the object at high temperature and most condition, the main protein of the bacteria would be solidified so that the bacteria can be killed.

The device is widely used in pharmaceutical, medical, scientific and other industries for the high temperature sterilization, cooling and drying process to the biological products, medical devices, sterile clothing, tools, utensils, media, and the other items.

3. CHARACTERISTICS

The main body is with horizontal rectangle double layer structure, the inside chamber is made of SUS30408 or SUS31608 stainless steel, the outer layer is made of the brushed decorative sheet, and the there is motorized door or sliding door for choose, pneumatic sealing, and the double door interlocking are strictly in accordance with the GSSD required.

The control system: adopt the Siemens PLC and Siemens touch screen.

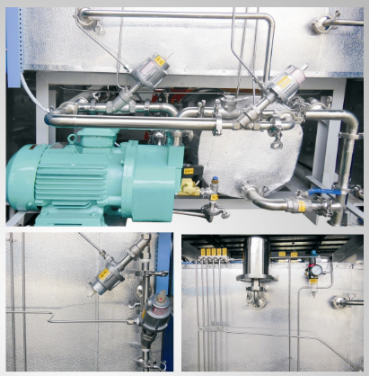

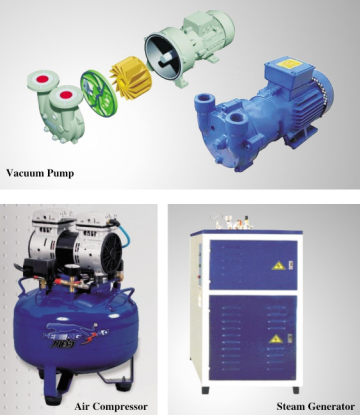

The piping system: Adopt with the reliable Germany Burkert or GEMU pneumatic angle type valve, water ring vacuum pump and 1.22um high efficiency sterile medical grade filters, the pipe clamp adopts the quick connectors, the piping and the related spares are all according to the sanitation standard.

4. CHARACTERISTICS OF SOFTWARE

·With Germany Simens PLC platform independent research and development, human-Machine Interaction, convenient for operation.

·Software design and manufacture products in strict accordance with the technical requirements for the sterilization process.

·The Operating authority is divided into three levels to the manager, the technologist, and the operators.

· Program interlocked, by the program is running, the sealing door can not be open.

·All the alarm and the technical figures can be recorded and print.

·If the inner chamber is higher than the safety pressure, the door can not be open.

·Perfect product safety protection measures,4 level emergency treatment of abnormal state.

5. STERILIZING CYCLES

The sterilization cycle to the solid objects applied to the instruments, dressings, utensils and other items.

The sterilization to the fluid, applied to the fluid placed into the non-sealed media which can not bear the high heat and vacuum process.
