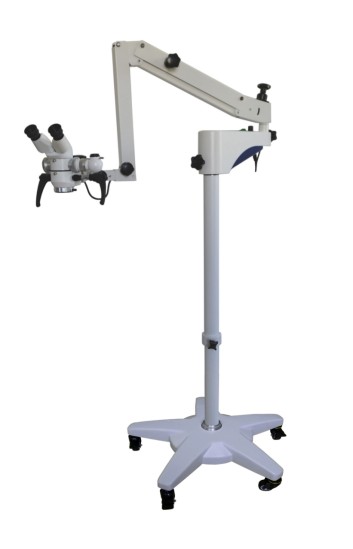

CN-130 Multi-function Operation Microscope (Special for Dental Operation)

Our Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

Our Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.



Specifications:

Observation angle: 45°tilted

Magnification of binocular: 6X

Interpupillary distance: 50mm-80mm

Diopter: ±5D

Focal length of objective: F=200mm and F=300mm two objectives

Magnification changer: 3-step: 0.6X, 1X, 1.6X

Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Fine focusing distance: 10mm

Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx

Filter: Build-in green and yellow filters

With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable

Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked

Floor stand: 2-part column fitted on the five-star base with casters

Power supply: AC100V-AC240V

Optional accessories: Demonstrator, Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm & F=400mm, Table mount clamp, Wall mount bracket.



Item

CN-101

CN-102

CN-120

CN-130

Binocular observation

Straight

45º Tilted

Straight

45º Tilted

Magnification of binocular

6X

Interpupillary distance

50mm-80mm

Diopter

±5D

Magnification changer

3-step magnification change: 0.6X,1X,1.6X

Focal length of objective

Two objectives: F=200 & F=300mm (M45x0.75mm)

Total magnification

3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field

60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Beamsplitter

No

50:50 Beamsplitter

Video camera adapter

C-mount 1/3 inch video camera attachable

Fine focusing range

10mm

Filter

Built-in green and yellow filters

Balancing arm

2-part arm with universal joints

2-part arm with universal joints, counterweight adjustable and can be locked

Illumination system

Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx

Stand

2-part column fitted on the five-star base with casters

2-part column fitted on the five-star base with casters

Optional accessories

Demonstrator,  Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket
