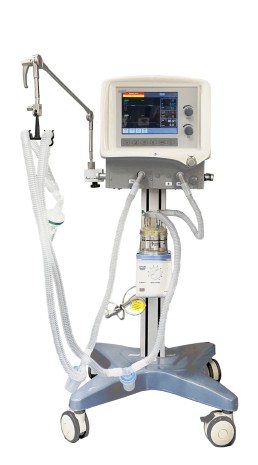

CN-S1600 ICU Ventilator

10.4” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.
Recycle breathing pipe, ensure easy operating and keep tidy.
Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.
Venturi effect technology ensure the machine working without air gas source.

Application：

The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support.

Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Intra-operation, post-operation respiratory support, other respiratory treatment.

Trust Points

l Simplicity: easy to use, easy to move with 4 wheels.

l Choice: adapt the equipment to your patients and procedures freely

l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes,

including 5 modes: IPPV; A/C; SIMV; SPONT/CPAP; MANU.

l Designed and manufactured with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and big screen give you better operating experience.

l Over 2,000 units installed in the world.

Features

l 10.4” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

l Recycle breathing pipe, ensure easy operating and keep tidy.

l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

l Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

l Venturi effect technology ensure the machine working without air gas source.

Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.

l With built-in backup power source, when outside power source goes off, back-up power source starts to work.

l Self-check before running, eliminate system mistake.

l Separate design of electric and gas, keep safety running of ventilator.

Specifications

l Ventilation modes:	l IPPV; A/C; SIMV; SPONT/CPAP; MANU
l Ventilator parameter ranges	l
l Tidal volume(Vt)	l 0, 20 mL ～ 1500 mL
l Frequence（Freq）	l 1bpm ～ 100 bpm
l I/E	l 4:1～1:8
l PEEP	l 0cmH2O ～ 20 cmH2O
l Pressure triggering sensitivity（PTr）	l －20 cmH2O ～ 0 cmH2O（Based on PEEP）
l SIGH	l 0(off) 1/100 ～ 5/100
l Apnea Ventilation	l OFF，5 s　～ 60 s
l Monitored Parameters	l
l Frequence（Freq）	l 0 /min ～ 100 /min
l Tidal volume(Vt)	l 0 mL ～ 2000 mL
l MV l Airway pressure	l 0 L/min ～ 99 L/min l 0cmH2O ～ 100cmH2O
l Oxygen concentration	l 15 % ～ 100 % l
l Graphical display:	l
l P-T(pressure – time)	l
l F-T(flow – time)	l
Size 1.Wooden case packing size(main engine)：L 560W 560H 615mm , GW：35KG ; NW：17KG 2.Wooden case packing size(trolley)：L650W690H 520 mm , GW：38KG NW：18G Alarm and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	＜11.3±0.3V
No tidal volume	No tidal volume within 6s
High oxygen concentration alarm Low oxygen concentration alarm	19%-100% 18%-99%
High Airway pressure alarm Low Airway pressure alarm High Minute Volume alarm Low Minute Volume alarm Continuous Pressure alarm	20cmH2O-100cmH2O 0cmH2O-20cmH2O 1L/min-99L/min 0-20L/min (PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
Working conditions
Gas source	O2,
Pressure	280kPa-600kPa
Voltage	-220V±22V
Power frequency	50Hz±1Hz
Input power	40VA
